IBIS VARIO
POA

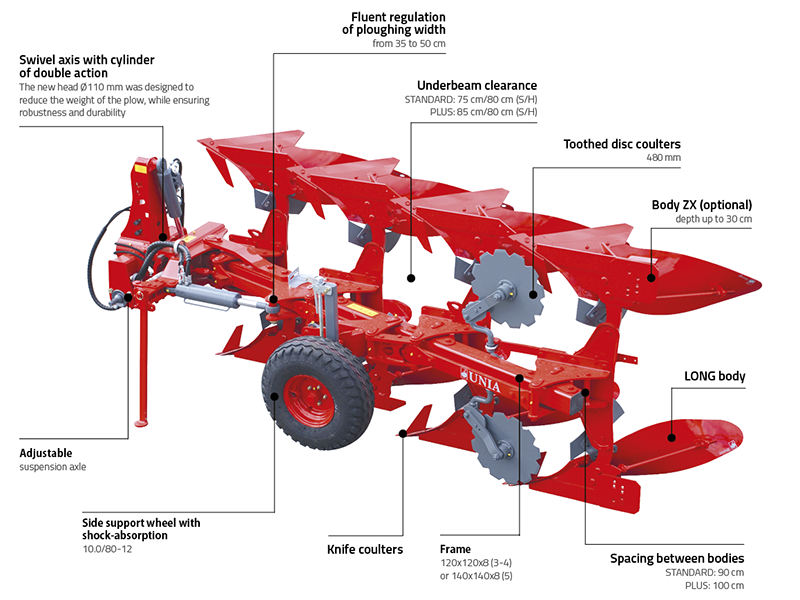

- hitch axle: ø60-825/ø36 mm with two-stage adjustment (VARIO 4 / VARIO 5)
- ø120 turntable axis with double-acting cylinder
- 120×120×8 mm frame (VARIO 4)
- 140×140×8 mm frame (VARIO 5)
- LONG plough body with trashboard
- bolt protection
- non-stop 7-leaf spring protection (version S)
- hydraulic protection (version H)
- adjustable ploughing width: within the range 35÷50 cm
- side support wheel 10.0/80-12 with wheel shock absorber
- ø480 mm coulter disc with bolt protection
- ø480 mm coulter disc with spring protection (version S / H)
- adjustment of the first furrow-slice width with adjustment screw
- beam tilling cylinder
- filter for hydraulic hose
- interbody clearance: 90 cm
- underbeam clearance: 75 cm, 80 cm ( S / H)
- interbody clearance: 100 cm
- underbeam clearance: 85 cm,80 cm ( S / H)
